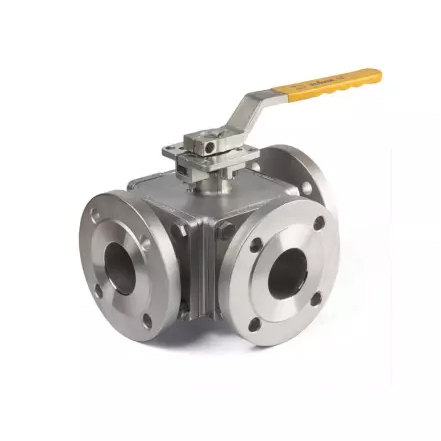

FlowX – Hand Lever 3-Way Flange Ball Valve
-
- 1/2” through 4”
- L-Port or T-Port Configurations
- ANSI 150# Flanged Ends
- Electric and Pneumatic Actuators
- 4-Seat Design for high cycling
- Cost-efficient Actuators
- Secure True ISO Mounting Pad most models are direct mount for lowest possible stack up height
- Ported 3 way ball valves offering excellent versatility for mixing and diverting applications
- ISO 5211 Secure Mount actuator top flange
* สินค้ามีการรับประกัน 1 ปี
** โปรดติดต่อตัวแทนจำหน่ายของเราหากคุณสนใจสินค้า
FlowX Ball Valve
Dimensions
| Size | PN | ФD | Фd | Фd1 | Фd2 | L | n | Фh | T | f | H | H1 | L1 | |
| DN | In. | |||||||||||||
| 15 | ½ | 10-40 | 15 | 95 | 65 | 45 | 155 | 4 | 14 | 16 | 2 | 64.5 | 92.5 | 165 |
| 20 | ¾ | 10-40 | 20 | 105 | 75 | 58 | 165 | 4 | 14 | 18 | 2 | 64.5 | 92.5 | 165 |
| 25 | 1 | 10-40 | 25 | 115 | 85 | 68 | 181 | 4 | 14 | 18 | 2 | 67.5 | 97.5 | 196 |
| 32 | 1¼ | 10-40 | 32 | 140 | 100 | 78 | 190 | 4 | 18 | 18 | 2 | 78.5 | 108.5 | 196 |
| 40 | 1½ | 10-40 | 40 | 150 | 110 | 88 | 212 | 4 | 18 | 18 | 3 | 85 | 122.5 | 232 |
| 50 | 2 | 10-40 | 50 | 165 | 125 | 102 | 232 | 4 | 18 | 20 | 3 | 93 | 130.5 | 232 |
| 65 | 2½ | 10-40 | 65 | 185 | 145 | 122 | 290 | 4 | 18 | 22 | 3 | 121 | 191 | 300 |
| 80 | 3 | 10-16 | 76 | 200 | 160 | 138 | 310 | 8 | 18 | 20 | 3 | 153 | 223 | 300 |
| 100 | 4 | 10-16 | 100 | 220 | 180 | 158 | 352 | 8 | 18 | 22 | 3 | 170.5 | 262 | 400 |
ดาวน์โหลดโบรชัวร์
3 Way Flanged Ball Valve
Download
Ball Valve
Download
