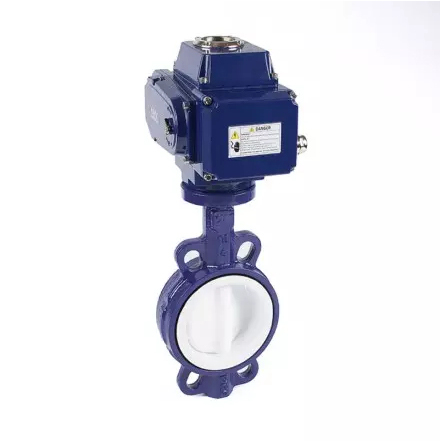

FlowX – Electric Fully Lined Butterfly Valve
-
- The lining butterfly valve body is a split type combination. Easy to assemble and seal adjustment, when the valve is working, only the fluoroplastic seat and the fluoroplastic valve plate are in contact with the medium.
- The inner surface of the valve body channel is smooth, the fluid resistance is small, the CV value is high, the circulation capacity is strong, the torque is moderate, and the zero leakage of the medium is completely achieved. The valve is small in size, light in weight, compact in structure, rapid in switching, beautiful in appearance, and excellent in craftsmanship. Reliable performance, light operation, long service life.
- The valve can withstand any corrosive media other than molten alkali metals and elements. It is a gas, liquid, semi-fluid pipeline and container for chemical, petroleum, pharmaceutical, food, steel smelting, papermaking, hydropower, and environmental protection systems. Do a quick cut-off and adjust the best product for your device.
- Lining materials: PTFE, FEP, PFA, GXPO, etc.
- Connection form: clip type, flange type, lug type connection
- Drive mode: manual, turbine, electric, pneumatic
FlowX Butterfly Valve
ติดต่อเราง่ายๆผ่าน Line Official
FlowX Butterfly Valve
Main Specification
Nominal Size | Operated Type | Work Pressure | Work Temperature | Seal Material | Disc Material | Body Material | Medim | Connection Standard |
DN25
↓ 300 |
Pneumatic Actuator
Electric Actuator Manual Hand Lever Worm Gear |
PN10
PN16 |
-15-150°C | PTFE
FEP PFA GXPO |
WCB
SS304 |
Ductile Iron
Stainless Steel WCB |
Strong Acid
Strong Alkali Strong Oxidant |
PN10/PN16
ANSI150 DIN16 JIS10K/16K |
FlowX Butterfly Valve
Dimensions
Size | CLASS150 | JIS 10K | PN10 | PN16 | A | B | L | ФD | H | L1 | C | WT (kg) | |||||
DN | NPS | D1 | N-Фd1 | D1 | N-Фd1 | D1 | N-Фd1 | D1 | N-Фd1 | ||||||||
50 | 2″ | 120.6 | 2-Ф19.1 | 120 | 2-Ф19 | 125 | 2-Ф19 | 125 | 2-Ф19 | 140 | 80 | 43 | 53 | 357.5 | 162 | 140.5 | – |
65 | 2½” | 139.7 | 2-Ф19.1 | 140 | 2-Ф19 | 145 | 2-Ф19 | 145 | 2-Ф19 | 150 | 89 | 45 | 65 | 407.5 | 211.5 | 154 | – |
80 | 3″ | 152.4 | 2-Ф19.1 | 150 | 2-Ф19 | 160 | 2-Ф19 | 160 | 2-Ф19 | 158 | 95 | 45 | 79 | 421.5 | 211.5 | 154 | – |
100 | 4″ | 190.5 | 2-Ф19.1 | 175 | 4-Ф19 | 180 | 2-Ф19 | 180 | 4-Ф19 | 176 | 114 | 52 | 104 | 493 | 259 | 186 | – |
125 | 5″ | 215.9 | 4-Ф22.4 | 210 | 4-Ф23 | 210 | 2-Ф23 | 210 | 4-Ф23 | 190 | 125 | 56 | 123.3 | 520 | 259 | 186 | – |
150 | 6″ | 241.3 | 4-Ф22.4 | 240 | 4-Ф23 | 240 | 4-Ф23 | 240 | 4-Ф23 | 210 | 139 | 56 | 155.1 | 552 | 259 | 186 | – |
200 | 8″ | 298.5 | 4-Ф22.4 | 290 | 4-Ф23 | 295 | 4-Ф23 | 295 | 4-Ф23 | 236 | 175 | 60 | 202.5 | 614 | 259 | 186 | – |
250 | 10″ | 361.9 | 4-Ф25.4 | 355 | 4-Ф25 | 350 | 4-Ф23 | 355 | 4-Ф28 | 275 | 203 | 68 | 250.5 | 684 | 259 | 186 | – |
300 | 12″ | 431.8 | 4-Ф25.4 | 400 | 4-Ф25 | 400 | 4-Ф23 | 410 | 4-Ф28 | 305 | 242 | 78 | 301.5 | 776.5 | 283.5 | 193 | – |
350 | 14″ | 476 | 4-Ф28.5 | 445 | 4-Ф25 | 460 | 4-Ф23 | 470 | 4-Ф28 | 337 | 284 | 78 | 333.1 | 85.5 | 283.5 | 193 | – |
