FlowX – Pneumatic Flanged Butterfly Valve
-
- Small and lightweight, easy to disassemble and repair, and can be installed in any position.
- The structure is simple and compact, the operating torque is small, and the rotation of 90° turns on quickly.
- The flow characteristics of the linear trend, good regulation performance.
- The connection between the butterfly plate and the valve stem adopts a non-pin structure to overcome possible internal leakage points.
- The spherical shape of the outer circle of the butterfly plate improves the sealing performance and prolongs the service life of the valve. The zero leakage is still maintained when the pressure is switched on and off more than 50,000 times.
- The seal can be replaced, and the seal is reliable to achieve two-way seal.
- The butterfly board can be sprayed with layers according to user requirements, such as nylon or polytetrafluoroethylene.
- polytetrafl uoroethyl ene.
- Flange butterfly valve is suitable for temperature≤120℃ or ≤ 150 ℃, nominal pressure ≤1.6MPa water supply and drainage, sewage, food, heating, gas, shipbuilding, hydropower, metallurgy, energy systems and textile and other industries, especially for two-way sealing and Easy to corrode valve body, adjust flow and shutoff medium.

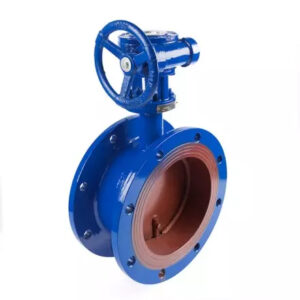

FlowX Butterfly Valve
* สินค้ามีการรับประกัน 1 ปี
** โปรดติดต่อตัวแทนจำหน่ายของเราหากคุณสนใจสินค้า
FlowX Butterfly Valve
Main Specification
Nominal Size | Operated Type | Work Pressure | Work Temperature | Seal Material | Disc Material | Body Material | Medim | Connection Standard |
DN25
↓ 1200 |
Pneumatic Actuator
Electric Actuator Manual Hand Lever Worm Gear |
PN6
PN10 PN16 |
-15-85°C
-25-150°C -15-85°C -25-200°C |
EPDM
PTFE NBR VITON |
SS304/SS316
Aluminum Bronze Nylon Ductile Iron 2205 2507 1.4529 |
Ductile Iron
SS304/SS316 WCB Aluminium Alloy 2205 2507 1.4529 |
Water
Oil Gas Powder FGDD |
PN10/PN16
ANSI150 DIN16 JIS10K/16K |
FlowX Butterfly Valve
Dimensions
Size | CLASS150 | JIS 10K | PN10 | PN16 | A | B | L | ФD | H | L1 | C | WT (kg) | |||||
DN | NPS | D1 | N-Фd1 | D1 | N-Фd1 | D1 | N-Фd1 | D1 | N-Фd1 | ||||||||
50 | 2″ | 120.6 | 4-Ф19.1 | 120 | 4-Ф19 | 125 | 4-Ф19 | 125 | 4-Ф19 | 118 | 75 | 108 | 52.9 | 282.5 | 139.5 | 71 | 6.9 |
65 | 2½” | 139.7 | 4-Ф19.1 | 140 | 4-Ф19 | 145 | 4-Ф19 | 145 | 4-Ф19 | 130 | 93 | 112 | 64.5 | 323.5 | 162 | 80.5 | 11.2 |
80 | 3″ | 152.4 | 4-Ф19.1 | 150 | 8-Ф19 | 160 | 8-Ф19 | 160 | 8-Ф19 | 145 | 100 | 114 | 78.8 | 345.5 | 162 | 80.5 | 11.6 |
100 | 4″ | 190.5 | 8-Ф19.1 | 175 | 8-Ф19 | 180 | 8-Ф19 | 180 | 8-Ф19 | 155 | 114 | 127 | 104 | 386 | 207 | 95 | 14.8 |
125 | 5″ | 215.9 | 8-Ф22.5 | 210 | 8-Ф23 | 210 | 8-Ф23 | 210 | 8-Ф23 | 170 | 125 | 140 | 123.3 | 423.5 | 237.5 | 106 | 20.6 |
150 | 6″ | 241.3 | 8-Ф22.5 | 240 | 8-Ф23 | 240 | 8-Ф23 | 240 | 8-Ф23 | 190 | 143 | 140 | 155.1 | 474.5 | 271.5 | 123 | 24.5 |
200 | 8″ | 298.5 | 8-Ф22.5 | 290 | 12-Ф23 | 295 | 8-Ф23 | 295 | 12-Ф23 | 205 | 170 | 152 | 202.5 | 546.5 | 328 | 137 | 36 |
250 | 10″ | 361.9 | 12-Ф25.5 | 355 | 12-Ф25 | 350 | 12-Ф23 | 355 | 12-Ф28 | 235 | 198 | 165 | 250.5 | 616.5 | 366 | 148 | 51.3 |
300 | 12″ | 540 | 12-Ф25.5 | 400 | 16-Ф25 | 400 | 12-Ф23 | 410 | 12-Ф28 | 280 | 223 | 178 | 301.5 | 709 | 428 | 164 | 71.8 |
350 | 14″ | 578 | 12-Ф28.5 | 455 | 16-Ф25 | 460 | 16-Ф23 | 470 | 16-Ф28 | 328 | 250 | 190 | 333.3 | 800 | 430 | 186.5 | 102 |
