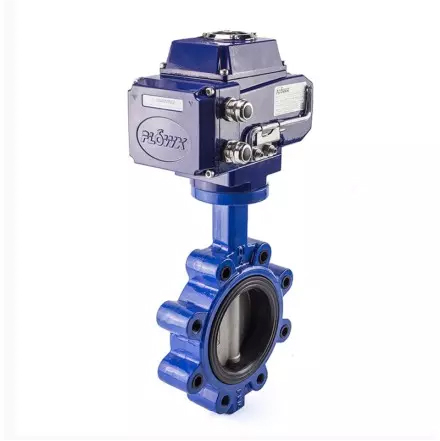

FlowX – Electric Lug Style Butterfly Valve
-
- LT type is also called single Plate butterfly valve, lug type butterfly valve
- It is a simple structure of the regulating valve. that can be used for low pressure pipeline medium switching means that the closing element (valve or butterfly plate) is a disk, and rotates around the valve shaft to open and close.
- A valve that can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil products, liquid metals. In the pipeline mainly cut off and throttling effect. Butterfly valve opening and closing device is a disc-shaped butterfly plate, rotating around its own axis in the valve body, so as to achieve the purpose of opening and closing or adjusting.
FlowX Butterfly Valve
* สินค้ามีการรับประกัน 1 ปี
** โปรดติดต่อตัวแทนจำหน่ายของเราหากคุณสนใจสินค้า
FlowX Butterfly Valve
Main Specification
Nominal Size | Operated Type | Work Pressure | Work Temperature | Seal Material | Disc Material | Body Material | Medim | Connection Standard |
DN25
↓ 1200 |
Pneumatic Actuator
Electric Actuator Manual Hand Lever
|
PN25 | -15-85°C
-25-150°C -15-85°C -25-200°C |
EPDM
PTFE NBR VITON |
SS304/SS316
Nylon Ductile lron 2205 2507 1.4529 |
Ductile Iron
SS304/SS316 WCB Aluminium Alloy 2205 2507 1.4529 |
Water
Oil Gas Powder FGDD |
PN10/PN16
ANSI150 DIN16 JIS10K/16K |
FlowX Butterfly Valve
Dimensions
Size | CLASS150 | PN10 | PN16 | A | B | L | ФD | H | C | L1 | WT (kg) | ||||
DN | NPS | D1 | N-M | D1 | N-M | D1 | N-M | ||||||||
50 | 2″ | 120.6 | 4-5/8 | 125 | 4-M16 | 125 | 4-M16 | 140 | 80 | 42 | 53 | 357 | 140.5 | 165 | – |
65 | 2½” | 139.7 | 4-5/8 | 145 | 4-M16 | 145 | 4-M16 | 150 | 89 | 44.7 | 65 | 376 | 140.5 | 165 | – |
80 | 3″ | 152.4 | 4-5/8 | 160 | 8-M16 | 160 | 8-M16 | 158 | 95 | 46 | 79 | 390 | 140.5 | 165 | – |
100 | 4″ | 190.5 | 8-5/8 | 180 | 8-M16 | 180 | 8-M16 | 175 | 114 | 52 | 104 | 476 | 154 | 211.5 | – |
125 | 5″ | 215.9 | 8-3/4 | 210 | 8-M16 | 210 | 8-M16 | 190 | 127 | 54.4 | 123.3 | 485 | 154 | 211.5 | – |
150 | 6″ | 241.3 | 8-3/4 | 240 | 8-M20 | 240 | 8-M20 | 211 | 139 | 55.8 | 155.1 | 553 | 186 | 259 | – |
200 | 8″ | 298.5 | 8-3/4 | 295 | 12-M20 | 295 | 12-M20 | 235 | 175 | 60.6 | 202.5 | 613 | 186 | 259 | – |
250 | 10″ | 361.9 | 12-7/8 | 350 | 12-M24 | 355 | 12-M24 | 265 | 203 | 65.5 | 250.5 | 671 | 186 | 259 | – |
300 | 12″ | 431.8 | 12-7/8 | 400 | 16-M20 | 410 | 16-M24 | 305 | 242 | 76.9 | 301.5 | 771 | 193 | 283.5 | – |
