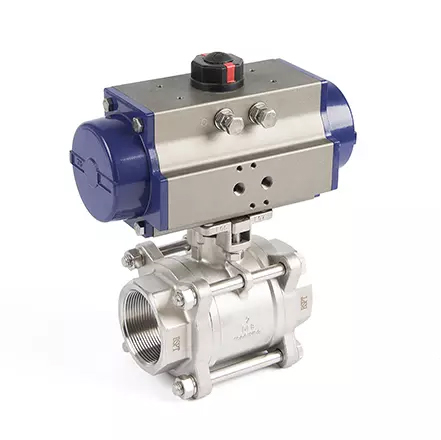

FlowX – Pneumatic 3-Piece Thread Ball Valve
-
- Each valves comply with ISO 5211
- Full port stainless steel 3-piece ball valve
- 1/4” through 4” NPT
- Antistatic device
- Blowout-proof stem
- Pressure rating 1000 wog
- Temperature rating varies from with o-ring material
- Threaded End Connections meet ASME B 1.20.1
- NPT, DIN 2999/ 259, ISO 228/1， JIS B 0203
- Inspection and testing to currentAPl598, EN1226
* สินค้ามีการรับประกัน 1 ปี
** โปรดติดต่อตัวแทนจำหน่ายของเราหากคุณสนใจสินค้า
FlowX Ball Valve
Dimensions
| Size | d | L | H | HEX.B | SR | DA | THREAD | |||
| DN | In. | H1 | L1 | H1 | L1 | |||||
| 15 | ½ | 15 | 89 | 57 | 28 | 145.5 | 162 | 134.5 | 139.5 | NPT
BSP PT DIN etc |
| 20 | ¾ | 20 | 89 | 57 | 34.5 | 145.5 | 162 | 134.5 | 139.5 | |
| 25 | 1 | 25 | 90 | 56.4 | 46 | 161.4 | 207 | 144.9 | 162 | |
| 32 | 1¼ | 32 | 110 | 70.3 | 52 | 175.3 | 207 | 158.8 | 162 | |
| 40 | 1½ | 38 | 120 | 79 | 58.5 | 195.5 | 237.5 | 184 | 207 | |
| 50 | 2 | 50 | 140 | 86.7 | 71.5 | 203.2 | 237.5 | 191.7 | 207 | |
| 65 | 2½ | 64 | 185 | 114 | 86.5 | 240.5 | 271.5 | 230.5 | 237.5 | |
| 80 | 3 | 72 | 205 | 121 | 101 | 280.5 | 328 | 250.5 | 271.5 | |
| 100 | 4 | 100 | 240 | 140 | 128 | 311.5 | 366 | 299.5 | 328 | |
