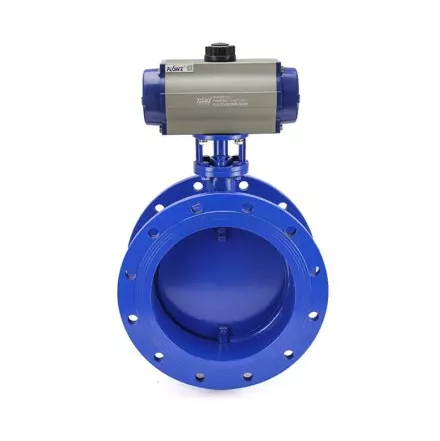

FlowX – Pneumatic Ventilation Butterfly Valve
-
- Ventilation butterfly valve uses the aluminum alloy material as the valve body to process the seal ring and adopts electric or pneumatic actuator.
- The applicable temperature depends on the valve body selection, nominal pressure ≤0.6MPa, generally applicable to industrial, metallurgical, environmental protection and other pipelines for ventilation regulation media flow use.
- Ventilation butterfly valves are used in the dusty cold air or hot air gas pipelines in the ventilation and environmental protection projects in the chemical, building materials, power stations, and glass industries, as a gas medium to regulate the flow or cut off the pipeline control devices.
- This type of valve should generally be installed horizontally in the pipeline.
- When the ventilating butterfly valve is in the fully open position, the thickness of the ventilating disc is the resistance when the medium flows through the valve body, so the pressure drop generated by the valve is very small, so it has better flow control characteristics.
FlowX Butterfly Valve
ติดต่อเราง่ายๆผ่าน Line Official
FlowX Butterfly Valve
Main Specification
Nominal Size | Operated Type | Work Pressure | Work Temperature | Seal/Disc/Body/Material | Medim | Connection Standard |
DN80
↓ 2000 |
Pneumatic Actuato
Electric Actuator Manual Hand Lever Worm Gear
|
PN6
PN10 PN16 |
-15-430°C | Cast lron
Stainless Steel Alloy Steel Chromium Molybdenum Steel Other Special Materials |
Waste Gas
Smoke Aeration |
PN10/PN16
ANSI150 DIN16 JIS10K/16K |
FlowX Butterfly Valve
Dimensions
Size | b | L | D | D1 | N-Фd | L1 | C | |
DN | NPS | |||||||
80 | 3″ | 14 | 110 | 185 | 150 | 4-Ф18 | 237.5 | 106 |
100 | 4″ | 14 | 110 | 205 | 170 | 4-Ф18 | 237.5 | 106 |
150 | 6″ | 16 | 110 | 260 | 225 | 8-Ф18 | 271.5 | 123 |
200 | 8″ | 18 | 140 | 315 | 280 | 8-Ф18 | 271.5 | 123 |
250 | 10″ | 18 | 140 | 370 | 335 | 12-Ф18 | 328 | 137 |
300 | 12″ | 20 | 170 | 435 | 395 | 12-Ф23 | 328 | 137 |
350 | 14″ | 20 | 170 | 485 | 445 | 12-Ф23 | 366 | 148 |
400 | 16″ | 20 | 190 | 535 | 495 | 16-Ф23 | 366 | 148 |
450 | 18″ | 22 | 190 | 590 | 550 | 16-Ф23 | 428 | 164 |
500 | 20″ | 22 | 190 | 640 | 600 | 16-Ф23 | 428 | 164 |
