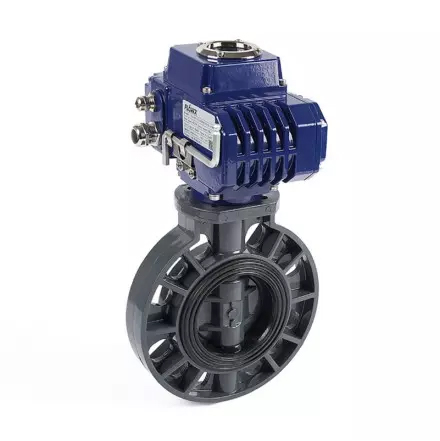

FlowX – Electric UPVC plastic Butterfly Valve
-
- UPVC plastic bu忧erfly valve body with light weight, strong corrosion resistance, compact and beautiful appearance, light weight body easy to install, a wide range of applications, material hygiene without DU, wear-resistant, easy to disassemble, easy maintenance, suitable for fluid: water , air, oils, corrosive chemical liquids, etc.
- RPP -20℃～90℃ UPVC -10℃～70℃ CPVC -40℃～95℃ PPH -20℃～95℃
- Valve body light weight, strong corrosion resistance
- Compact and beautiful appearance
- The body is light and easy to install
- High corrosion resistance, wide application range
FlowX Butterfly Valve
* สินค้ามีการรับประกัน 1 ปี
** โปรดติดต่อตัวแทนจำหน่ายของเราหากคุณสนใจสินค้า
FlowX Butterfly Valve
Main Specification
| Nominal Size | Operated Type | Work Pressure | Work Temperature | Seal Material | Disc/Body Material | Medim | Connection Standard |
| DN50
↓ 200 |
Pneumatic Actuato
Electric Actuator Manual Hand Lever Worm Gear
|
PN0.6
PN1.0 |
-15-85°C | EPDM
PTFE |
UPVC
CPV PPG FRPP PPH pp pp-R ABS |
Potable Water
Sewage High Purity Water |
PN10/PN16
ANSI150 DIN16 JIS10K/16K |
FlowX Butterfly Valve
Dimensions
| Size | DIN | ANSI 150 | JIS 10K | T | H1 | L | L1 | H | C1 | E | F | 4-C | ||||
| DN | NPS | n-Фe | P.C.D.N-ФD1 | n-Фe | P.C.D.N-ФD1 | n-Фe | P.C.D.N-ФD1 | |||||||||
| 50 | 2″ | 4-Ф19 | 125 | 4-Ф19 | 121 | 4-Ф19 | 120 | 12 | 100 | 165 | 43 | 317.5 | 140.5 | 65 | 50 | 4-7 |
| 65 | 2½” | 4-Ф19 | 145 | 4-Ф19 | 140 | 4-Ф19 | 140 | 12 | 112 | 165 | 46 | 339.5 | 140.5 | 65 | 50 | 4-7 |
| 80 | 3″ | 8-Ф19 | 160 | 4-Ф19 | 152 | 8-Ф19 | 15 | 12 | 120 | 165 | 49 | 355.5 | 140.5 | 65 | 50 | 4-7 |
| 100 | 4″ | 8-Ф19 | 180 | 8-Ф19 | 191 | 8-Ф19 | 175 | 12 | 140 | 211.5 | 54 | 422.5 | 154 | 65 | 70 | 4-10 |
| 125 | 5″ | 8-Ф19 | 210 | 8-Ф19 | 216 | 8-Ф19 | 210 | 15 | 168 | 211.5 | 64 | 465.5 | 154 | 90 | 70 | 4-10 |
| 150 | 6″ | 8-Ф23 | 240 | 8-Ф23 | 241 | 8-Ф23 | 240 | 15 | 181 | 259 | 70 | 527.5 | 186 | 90 | 70 | 4-10 |
| 200 | 8″ | 8-Ф23 | 295 | 8-Ф23 | 298 | 8-Ф23 | 290 | 15 | 215 | 259 | 88 | 594 | 186 | 125 | 102 | 4-12 |
