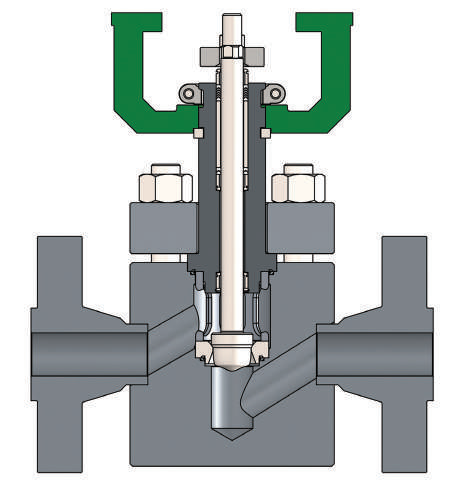

OpGL-XT™ Fabricated Globe Control Valve

Optimux OpGL Globe Control Valve is Trimteck’s flagship product. The OpGL has been engineered to provide superior performance while permitting easy, fast, and inexpensive maintenance. Unlike diaphragm-operated control valves, the Piston cylinder-actuated OpGL™ provides stiffness and maintains high positioning accuracy – making for the world’s most efficient and accurately responsive valve.

Why use a fabricated OpGL-XT?

    • Quick Lead Time – fabricated OpGL-XT bar stock bodies are not subject to foundry delays
    • Availability of Exotic Alloys – no limitation on construction material, which allows quick turnaround of valves fabricated from uncommon alloys
    • Availability of High Pressure Valves – the OpGL-XT can be machined up to ANSI Class 4500; again, with a faster turnaround than cast valves
    • Customizability – body styles, end connections, and face-to-face dimensions can all be customized as required
    • Severe Service – available with an array of severe service trims – including venturi seats for flashing service – as well as oversized wall thickness for noise abatement and added durability

*   สินค้ามีการรับประกัน 1 ปี

** โปรดติดต่อตัวแทนจำหน่ายของเราหากคุณสนใจสินค้า


Globe Control Valve

Control Valve Type Globe, Custom-Engineered/Specialty
Sizes (NPS) 1/4″, 1/2″, 1″, 1 1/2″, 2″, 3″, 4″, 6″, 8″, 10″, 12″
Body Styles Globe, Angle, Y-Pattern, Custom
Body Materials Carbon Steel, Stainless Steel, F9, F22, Duplex, Super Duplex, Hastelloy B, C, or X, Inconel, Monel, Titanium, Zirconium, Aluminum, Aluminum Bronze
Pressure Class (ASME/ANSI) CL150, CL300, CL600, CL900, CL1500, CL2500, CL4500
Shutoff Class (ANSI) Class III, Class IV, Class V, Class VI
End Connections RF Integral Flange, NPT, RTJ, Socketweld, Buttweld, Grayloc
Service General, Low Flow, Corrosive, Erosive, Dirty, Zero Fugitive Emissions, Cavitation, Noise, Flashing
Operating Temperature Standard, High, Cryogenic
Flow Characteristic Equal Percentage, Linear, Bi-Linear, Quick Open, Custom
Industries Aerospace & Defense, Chemical/Petrochemical, Food & Beverage, Industrial Gases, Metals & Mining, Oil & Gas, Power, Pulp & Paper, Refining
Standards & Norms ANSI/ISA, ASME, CRN, NACE, PED
