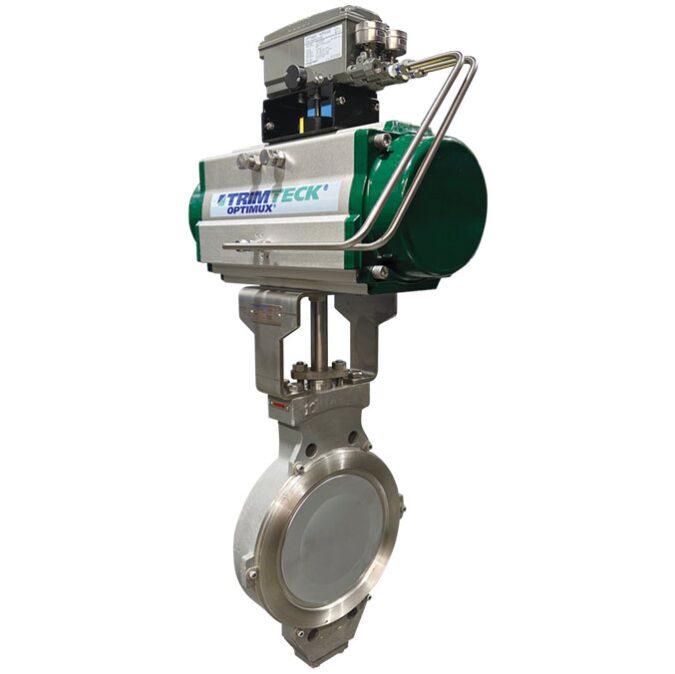

The OpDX High Performance Butterfly Valve uses a pressure-assisted seating concept to achieve bi-directional bubble-tight shutoff while maintaining a low breakout torque requirement. Available in ANSI Class 150 to 600 and 2” to 36”, the OpDX has a characterized disc enabling throttling.

• • Metal & Soft Seating Available
  • Available in metal (ANSI Class IV) or soft seat (ANSI Class VI)
  • Eccentric disc lifts off of the seat to prevent wear

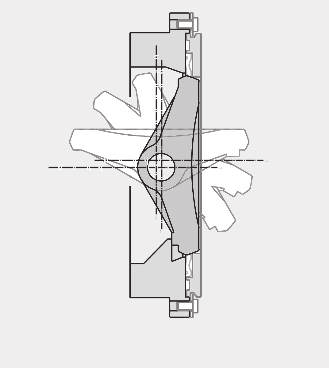

  • Accurate throttling achieved with modified parabolic geometry machined into the seat
  • Rugged and lightweight flangeless wafer body
  • MSS SP-67 face-to-face permits shorter flange bolting than ball or eccentric plug valves, increasing safety and reducing possibility of leakage

Butterfly Valve

Control Valve Type	Butterfly
Sizes (NPS)	2″, 3″, 4″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 24″, 28″, 32″, 36″
Body Materials	Carbon Steel, Stainless Steel
Motion	Rotary
Disc & Shaft Materials	17-4 pH, 440 Stainless Steel, CF8M Stainless Steel + Hard Chrome, Nitronic
Seat Materials	Inconel, Kel-F, PEEK, PTFE, Stainless Steel
Pressure Class (ASME/ANSI)	CL150, CL300, CL600
Shutoff Class (ANSI)	Class VI
End Connections	Wafer/Flangeless
Service	General
Operating Temperature	Standard
Flow Characteristic	Modified Parabolic
Industries	Aerospace & Defense, Chemical/Petrochemical, Food & Beverage, Metals & Mining, Oil & Gas, Power, Pulp & Paper, Refining
Standards & Norms	ANSI/ISA, ASME, NACE
