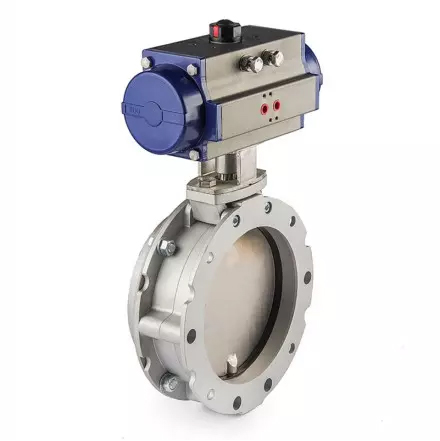

FlowX – Pneumatic Powder Butterfly Valve
-
- FLOWX series powder pneumatic butterfly valve is used advanced Italian technology by first-class engineers to make bold breakthroughs and innovations in the material technology and a new development of a powder, granular materials, material delivery Since the advent of new industrial products and products, it has created a series of successful applications in extremely harsh environments with granular media, and is very popular by owners and technical engineers in the powder industry.
- The valve body is made of lightweight high-pressure cast aluminum alloy with light weight.valve plate is lined with a steel core of wear-resistant polymer materials, and wear-resistant rubber seals to form a high wear resistance soft seal, wear and then strong can also be applied.
- The application of granular materials, especially for abrasive materials, in powder and granular material processing systems that require gravity blanking or pneumatic conveying. It is suitable for powder and pa「ticle materials with gravity blanking and gas conveying. Processing system. is specially used for powder/cement material industry products. Installed in the hopper, silo, scre.
- Single Flanged(S) and Double Flanged(D) is for your reference.
FlowX Butterfly Valve
ติดต่อเราง่ายๆผ่าน Line Official
FlowX Butterfly Valve
Main Specification
Nominal Size | Operated Type | Work Pressure | Work Temperature | Seal Material | Disc Material | Body Material | Medim | Connection Standard |
DN50
↓ 350 |
Pneumatic Actuato
Electric Actuator Manual Hand Lever Worm Gear |
PN 0.1 | -15-85°C | EPDM
NBR VITON |
SS304
SS316 |
WCB | Dust
Fodder Cement |
PN10/PN16
ANSI150 DIN16 JIS10K/16K |
FlowX Butterfly Valve
Dimensions
Size | D | D1 | D2 | Z-d | L | L1 | C | H | |
DN | NPS | ||||||||
100 | 4″ | 100 | 180 | 220 | 4-Ф14 | 77 | 94.5 | 208 | 373 |
150 | 6″ | 150 | 200 | 228 | 4-Ф14 | 77 | 109 | 245 | 417 |
200 | 8″ | 200 | 250 | 278 | 4-Ф14 | 77 | 123 | 266 | 474 |
250 | 10″ | 250 | 300 | 328 | 8-Ф14 | 77 | 137 | 328 | 573 |
300 | 12″ | 300 | 350 | 378 | 8-Ф14 | 77 | 148 | 340 | 633 |
350 | 14″ | 350 | 400 | 440 | 8-Ф14 | 85 | 168.5 | 401 | 721 |
400 | 16″ | 400 | 470 | 530 | 8-Ф14 | 85 | 168.5 | 430 | 779 |
