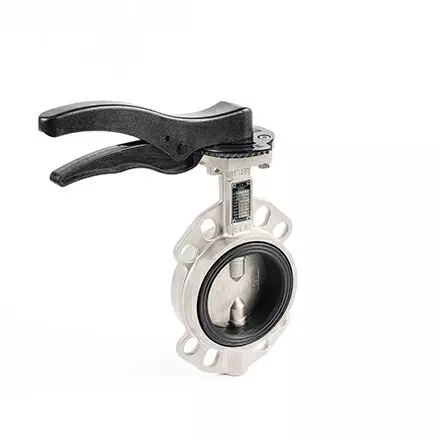

    FlowX – Manual Wafer Butterfly Valve

      • Designed to MASS-SP67, APl609 standards
      • Flanged ends designed To PN16,PN10,DlN16,JlS10K,16K ANSI B16.1/16.5,BS4504,DlN2015.
      • Working pressure: 225PSl TO 8″ 150PSI To12″
      • Shell test: 350PSl
      • Seal Test: 250PSI
      • Direct Mount ISO5211 for low profile,Cost-efficient operation
      • Pneumatic actuator, electric actuator, worm gear, handle lever as operators.

    Manual Handle Lever Operated

      • Cavity filled TFE® seats to reduce the threat of media entrapment
      • Block body and bolted end piece design for easy maintenance
      • Polished clamp end to meet BS 4835.3
    FlowX Butterfly Valve
    ขอใบเสนอราคา

    ติดต่อเราง่ายๆผ่าน Line Official

    Categories: , , Tags: , , , ,



    FlowX Butterfly Valve

    Main Specification

    Nominal Size Operated Type Work Pressure Work Temperature Seal Material Disc Material Body Material Medim Connection Standard
    DN25

    ↓

    1200

    		 Pneumatic Actuator

    Electric Actuator

    Manual Hand Lever

    Worm Gear

    		 PN6

    PN10

    PN16

    		 -15-85°C

    -25-150°C

    -15-85°C

    -25-200°C

    		 EPDM

    PTFE

    NBR

    VITON

    		 SS304/SS316

    Aluminum Bronze

    Nylon

    Ductile Lron

    2205

    2507

    1.4529

    		 Ductile Iron

    SS304/SS316

    WCB

    Aluminium Alloy

    2205

    2507

    1.4529

    		 Water

    Oil

    Gas

    Powder

    FGDD

    		 PN10/PN16

    ANSI150

    DIN16

    JIS10K/16K



    FlowX Butterfly Valve

    Dimensions

    flowx manual wafer butterfly valve - alldismo co.,ltd.



    Size CLASS150 JIS 10K PN10 PN16 A B ФD L H L1 C WT (kg)
    DN NPS D1 N-Фd1 D1 N-Фd1 D1 N-Фd1 D1 N-Фd1
    32 1¼” 88.9 4-Ф15.9 100 4-Ф19 100 4-Ф19 100 4-Ф19 110 64 34.6 33 242.35 165 213 1.2
    40 1½” 98.5 4-Ф15.9 105 4-Ф19 110 4-Ф19 110 4-Ф19 120 70 43 33 258.35 165 213 1.8
    50 2″ 120.6 4-Ф19.1 120 4-Ф19 125 4-Ф19 125 4-Ф19 140 80 52.9 42 288.35 165 213 3.1
    65 2½” 139.7 4-Ф19.1 140 4-Ф19 145 4-Ф19 145 4-Ф19 150 89 64.5 44.7 307.35 165 213 3.55
    80 3″ 152.4 8-Ф19.1 150 8-Ф19 160 8-Ф19 160 8-Ф19 158 95 78.8 46 321.35 211.5 213 3.95
    100 4″ 190.5 8-Ф19.1 175 8-Ф19 180 8-Ф19 180 8-Ф19 176 114 104 52 363.64 211.5 277 5.1
    125 5″ 215.9 4-Ф22.4 210 4-Ф23 210 4-Ф23 210 4-Ф19 190 127 123.3 54.4 390.64 259 277 7
    150 6″ 241.3 4-Ф22.4 240 4-Ф23 240 4-Ф23 240 4-Ф23 211 139 155.1 55.8 423.64 259 277 8.5
