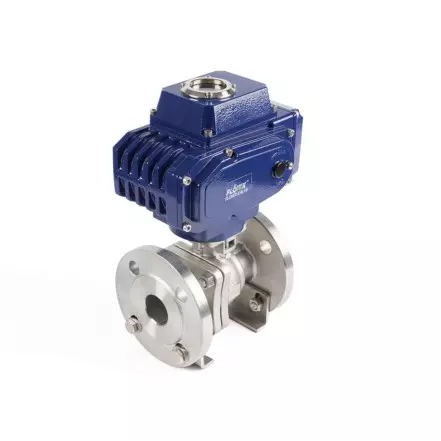

FlowX – Electric Actuator Flange Ball Valve
-
- Full port stainless or carbon steel flanged ball valve
- 1/2” through 8” with PN16 GB flanges
- Antistatic device
- Blowout-proof stem
- Pressure rating PN 16
- Temperature rating varies from with o-ring material
- API 607 fire safe tested and certified
- Belleville washers and adjustable packing for high cycle applications
- Inspection and testing to current GB/13927
* สินค้ามีการรับประกัน 1 ปี
** โปรดติดต่อตัวแทนจำหน่ายของเราหากคุณสนใจสินค้า
FlowX Ball Valve
Dimensions
| Size | D | D1 | D2 | L | n-Фh | T | f | H | L1 | WT (kg) | |
| DN | In. | ||||||||||
| 15 | ½ | 95 | 65 | 45 | 130 | 4-Ф14 | 16 | 2 | 186.5 | 165 | 4.9 |
| 20 | ¾ | 105 | 75 | 58 | 130 | 4-Ф14 | 18 | 2 | 191.5 | 165 | 5.6 |
| 25 | 1 | 115 | 85 | 68 | 140 | 4-Ф14 | 18 | 2 | 196 | 165 | 6.5 |
| 32 | 1¼ | 140 | 100 | 78 | 165 | 4-Ф18 | 18 | 2 | 208.5 | 165 | 8.1 |
| 40 | 1½ | 150 | 110 | 88 | 165 | 4-Ф18 | 18 | 2 | 246.5 | 211.5 | 11.7 |
| 50 | 2 | 165 | 125 | 102 | 203 | 4-Ф18 | 20 | 2 | 253.5 | 211.5 | 13.7 |
| 65 | 2½ | 185 | 145 | 122 | 222 | 8(4)-Ф18 | 18 | 2 | 317 | 259 | 21.5 |
| 80 | 3 | 200 | 160 | 138 | 241 | 8-Ф18 | 20 | 2 | 325 | 259 | 24.1 |
| 100 | 4 | 220 | 180 | 158 | 305 | 8-Ф18 | 22 | 2 | 338 | 259 | 30.4 |
| 125 | 5 | 250 | 210 | 188 | 356 | 8-Ф18 | 24 | 2 | 376 | 259 | 45.5 |
