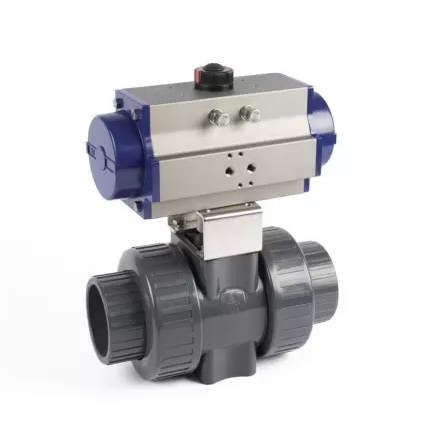

FlowX – Pneumatic True Union Ball Valve
-
- 1/2” through 4”
- True Union Ends
- PN10 working pressure
- Temperature rating varies from with o-ring material
- Electric and Pneumatic Actuators
- Cost-efficient Actuators
- Ideal for Use in Chemical, lndustrial,lrrigation, or
- Pool and Spa NSF Listed for Potable Water
ติดต่อเราง่ายๆผ่าน Line Official
FlowX Ball Valve
Dimensions
| Size | Фd | ФD | ФD1 | L | H | SR | DA | |||
| DN | In. | H1 | L1 | H1 | L1 | |||||
| 15 | ½ | 20 | 46 | 30.5 | 112 | 81 | 162 | 100.5 | 139.5 | 89.5 |
| 20 | ¾ | 25 | 55 | 36.5 | 130 | 90 | 162 | 100.5 | 139.5 | 89.5 |
| 25 | 1 | 32 | 66 | 43.5 | 144 | 101 | 207 | 117 | 162 | 100.5 |
| 32 | 1¼ | 40 | 82 | 54 | 168 | 117 | 207 | 117 | 162 | 100.5 |
| 40 | 1½ | 50 | 98 | 64.5 | 173 | 133 | 237.5 | 128.5 | 207 | 117 |
| 50 | 2 | 63 | 120 | 78.5 | 204 | 170 | 237.5 | 128.5 | 207 | 117 |
| 65 | 2½ | 75 | 139 | 92 | 275 | 189 | 271.5 | 141.5 | 237.5 | 128.5 |
| 80 | 3 | 90 | 162 | 109 | 300.5 | 212 | 328 | 171.5 | 271.5 | 141.5 |
| 100 | 4 | 110 | 226 | 145.5 | 330 | 286 | 366 | 183.5 | 328 | 171.5 |
