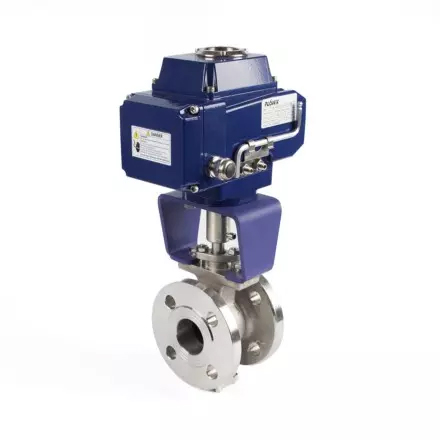

FlowX – Electric Actuator V Port Ball Valve
-
- 1/2” through 8”
- wafer or flange connection
- 150LB working pressure
- Temperature rating varies from with o-ring material
- With characterized V-ports, slotted ports or custom ports,
- V-Control Ball Valves provide accurate flow control
- Available in 3-Piece and Flanged bodies， V-Control valves
- 0ffer superior rangeability, repeatability and high flow capacity.
- Designed for easy automation
- Ideal control element in process piping systems
- Inspection and testing meet APl598
* สินค้ามีการรับประกัน 1 ปี
** โปรดติดต่อตัวแทนจำหน่ายของเราหากคุณสนใจสินค้า
FlowX Ball Valve
Dimensions
| Size | D | D1 | D2 | Z | d | T | F | L | H | L1 | H1 | |
| DN | In. | |||||||||||
| 25 | 1 | 110 | 79.4 | 50.8 | 4 | 15.9 | 16 | 2 | 102 | 133 | 165 | 270.5 |
| 32 | 1¼ | 115 | 88.9 | 63.5 | 4 | 15.9 | 18 | 2 | 102 | 138 | 211.5 | 306.5 |
| 40 | 1½ | 125 | 98.4 | 73 | 4 | 15.9 | 18 | 2 | 114 | 140 | 211.5 | 282.5 |
| 50 | 2 | 150 | 120.7 | 92.1 | 4 | 19.1 | 19 | 2 | 124 | 150 | 259 | 353 |
| 65 | 2½ | 180 | 139.7 | 104.8 | 4 | 19.1 | 20 | 2 | 145 | 165 | 259 | 368 |
| 80 | 3 | 190 | 152.4 | 127 | 4 | 19.1 | 20 | 2 | 165 | 178 | 259 | 381 |
| 100 | 4 | 230 | 190.5 | 157.2 | 8 | 19.1 | 22 | 2 | 194 | 190 | 259 | 393 |
| 125 | 5 | 255 | 215.9 | 185.7 | 8 | 22.2 | 22 | 2 | 194 | 205 | 259 | 408 |
| 150 | 6 | 280 | 241.3 | 215.9 | 8 | 22.2 | 24 | 2 | 229 | 235 | 259 | 438 |
| 200 | 8 | 345 | 298.5 | 269.9 | 8 | 22.2 | 26 | 2 | 243 | 265 | 283.5 | 495 |
